Print & Apply

Universal's UPA II Printer Applicator. For those in product identification, the UPA II simply means the industry's most durable printer & apply system. The UPA II can be found in some of the most difficult environments, working under the most strenuous of conditions. It's not your "throw-away" printer applicator, but it's priced to make you wonder why you would want to throw your money away on a "run-of-the-mill" print & apply system.

The UPA II features:
Easy-to-use operator touch screen.
Programmable Logic Controller (PLC).
Quick change tamp head.
Removable tamp assembly for easy access to print engine.
Proximity "smart head" sensor.
Product on delay.

The UPA II is equipped with the following print engines:

Universal Labeling Systems is RFID prepared to take on the challenges of reading, writing, printing and applying Radio Frequency Identification tags. The "smart label" tag is embedded with RFID transponder that includes integrated circuitry with an antenna and are designed to be programmed and re-programmed using radio waves.

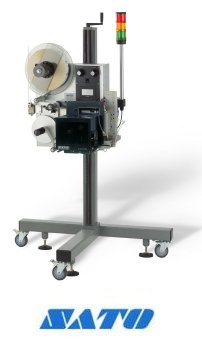

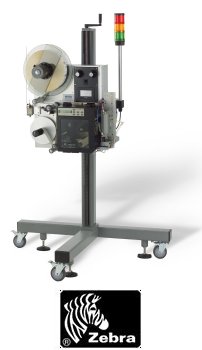

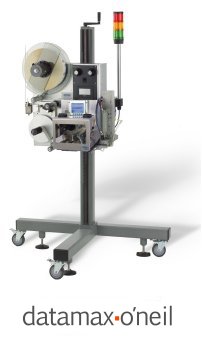

UPA II	Sato M & S Series	Zebra PAX Series	Datamax A-Class
Printer Type	Direct Thermal Thermal Transfer	Direct Thermal Thermal Transfer	Direct Thermal Thermal Transfer
Max Print Speed	4-16 inches per second	8-12 inches per second	2-12" per second
Print Resolution	203-609 DPI	203-300 DPI	203-600 DPI
Ribbon Saver	Factory Option	Not Available	Factory Option
Media width	6.5" maximum	7.1" maximum	6.7" maximum
Max Print Area	6" maximum	6.6" maximum	6.6" maximum
Fonts	8 standard; 2 raster	9 standard; 2 raster	10 internal
Bar Code Symbology	17 linear; 7-2D	16 linear; 8-2D	17 including 2D
Communication	RS-232, Parallel, Ethernet, or Wireless	RS-232, Parallel, Ethernet, or Wireless	RS-232, Parallel, Ethernet, or Wireless
Operating Environment	41-104 degrees F Humidity 15-85%	40-104 degrees F Humidity 15-95%	38-122 degrees F Humidity up to 95%
RFID	Factory Option	Factory Option	Factory Option
Options Please contact us for a complete list of optional accessories.	-Heavy Duty T or U Base Stand. -Light Tree Fault Detectors. -External output.	-Heavy Duty T or U Base Stand. -Light Tree Fault Detectors. -External output.	-Heavy Duty T or U Base Stand. -Light Tree Fault Detectors. -External output.
